Uni-Drive Wrapped V-Belt, Uni Cogged V-Belt
Catalogs
PRODUCTS
Uni-Drive Wrapped V-Belt, Uni Cogged V-Belt
CLASSICAL, NARROW VEE, COGGED RAW EDGE, VEE-BELT SECTION M, Z, A, B, 20, C, 25, D, E, F, SPA, SPB, SPC, SPZ, 3V, 5V, 8V, Raw Edge: ZX, AX, BX, CX, XPZ, XPA, XPB, XPC, AV10, AV13, 3VX, 5VX, 8VX,
Automotive Belts: AVX10 (9.5), AVX13 (12.5), AVX15, AVX17, AVX22, PK (CR, EPDM), ZA, RPP, YU, RU, MY, ZBS, S8M, YS etc.
Vee Belt range

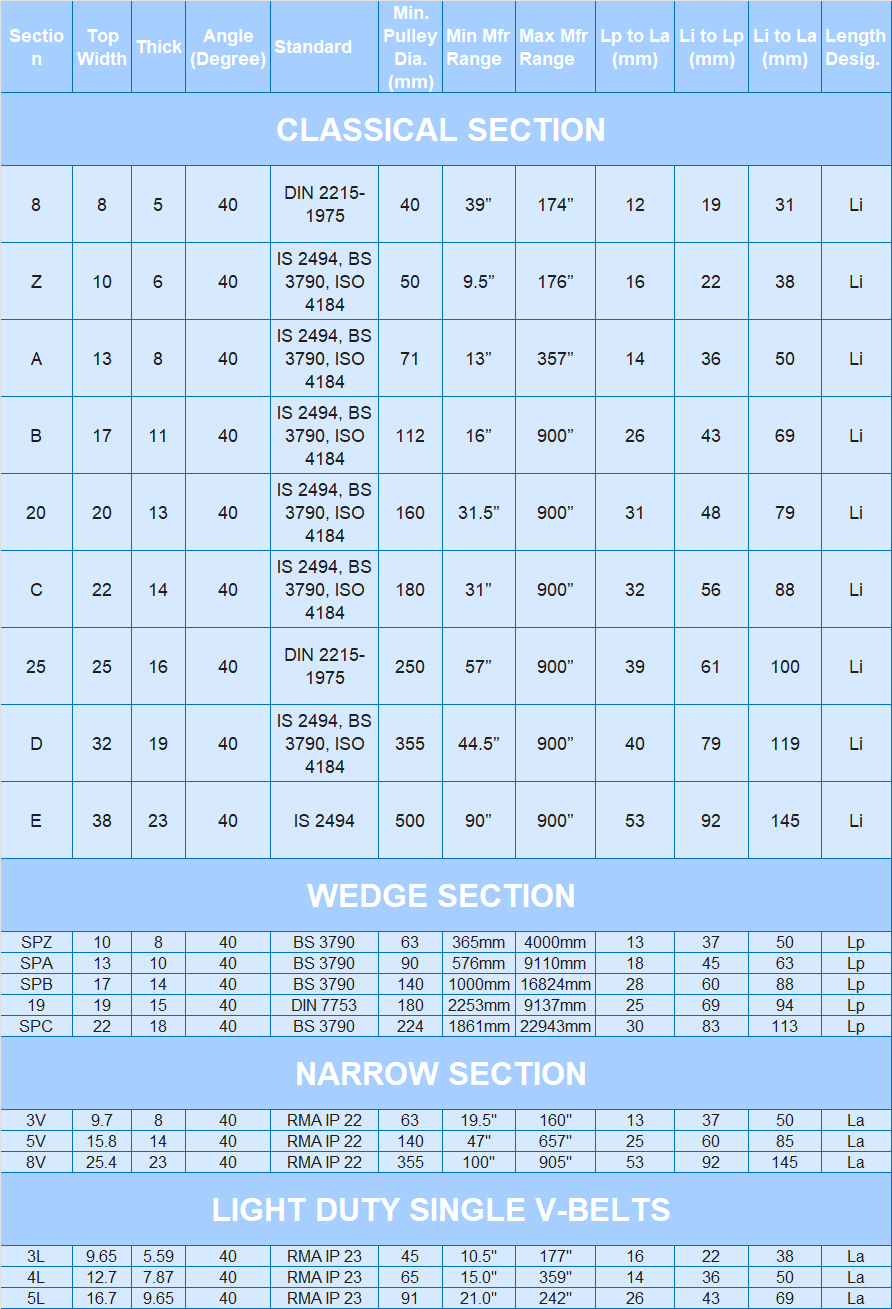

WRAPPED BELT RANGE
Features
- Oil Resistant & Antistatic
- Maximum Belt Linear Speed (Classical section up 30 m/sec, Wedge: Up to 42 m/sec, Narrow: Up to 45 m/sec)
- Temperature range: -18 deg C to +80 deg C
- ATEX certified FRAS (Fire resistant belts are also available)
Applications: Industrial drives such as pumps, generators, ball-mills, crushers, conpressors, etc.

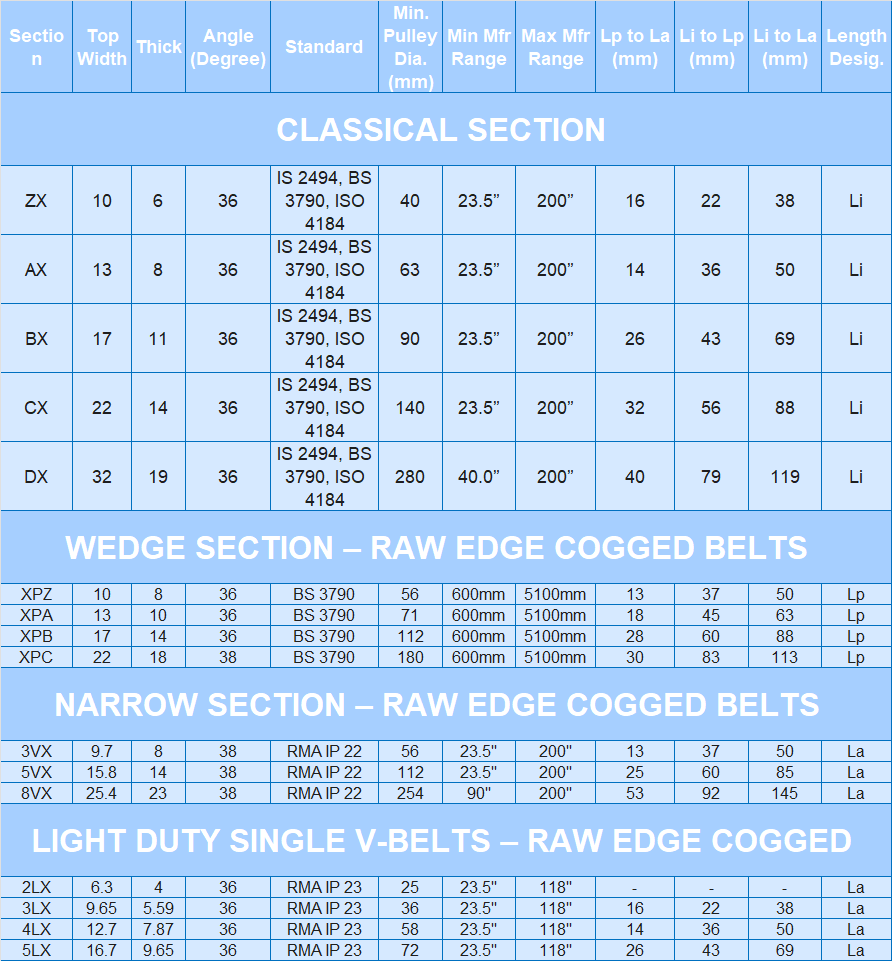

COGGED BELT RANGE
Features
- Oil Resistant & Antistatic
- Maximum Belt Linear Speed (Classical section up 30 m/sec, Wedge: Up to 42 m/sec, Narrow: Up to 45 m/sec)
- Higher power transmission capacity than wrapped belts
- Superior tranverse stiffness & high wear resistance
- Suitable for drives with small pulley diameters, high ambient temperature & speed
- Temperature range: -25deg C to +100deg C
- ATEX certified FRAS (Fire resistant belts are also available)
Applications: General Engineering, all industrial belt drives
Note: These sizes are indicative & denote minimum and maximum range. Intermediate sizes are available on request.
