FCU-Chilled Water

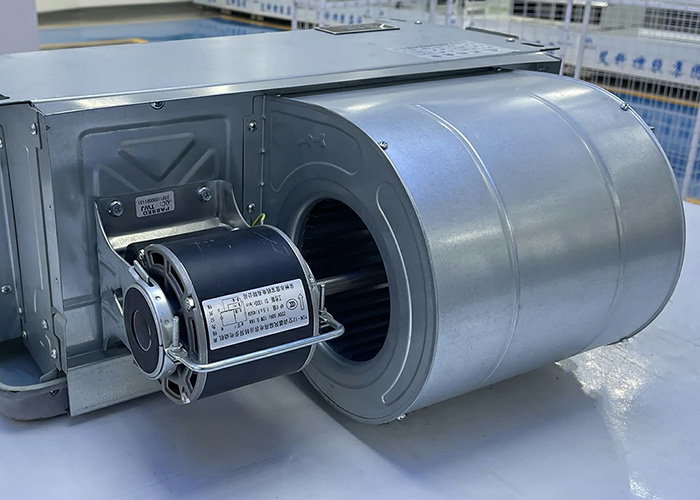

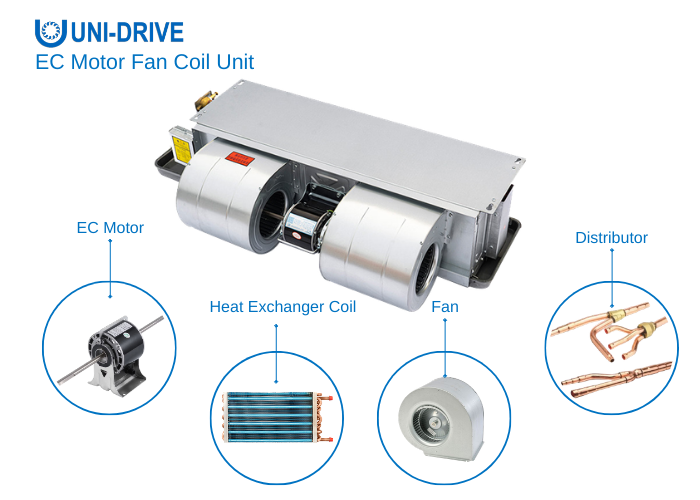

Fan Coil Units (FCUs) connected to chilled water systems provide energy-efficient cooling for indoor spaces. Chilled water is circulated through coils in the FCU, where heat exchange occurs to cool the air before it’s distributed throughout the room. Ideal for commercial and industrial buildings, this setup ensures quiet operation, flexible zoning, and consistent temperature control while supporting overall energy efficiency.

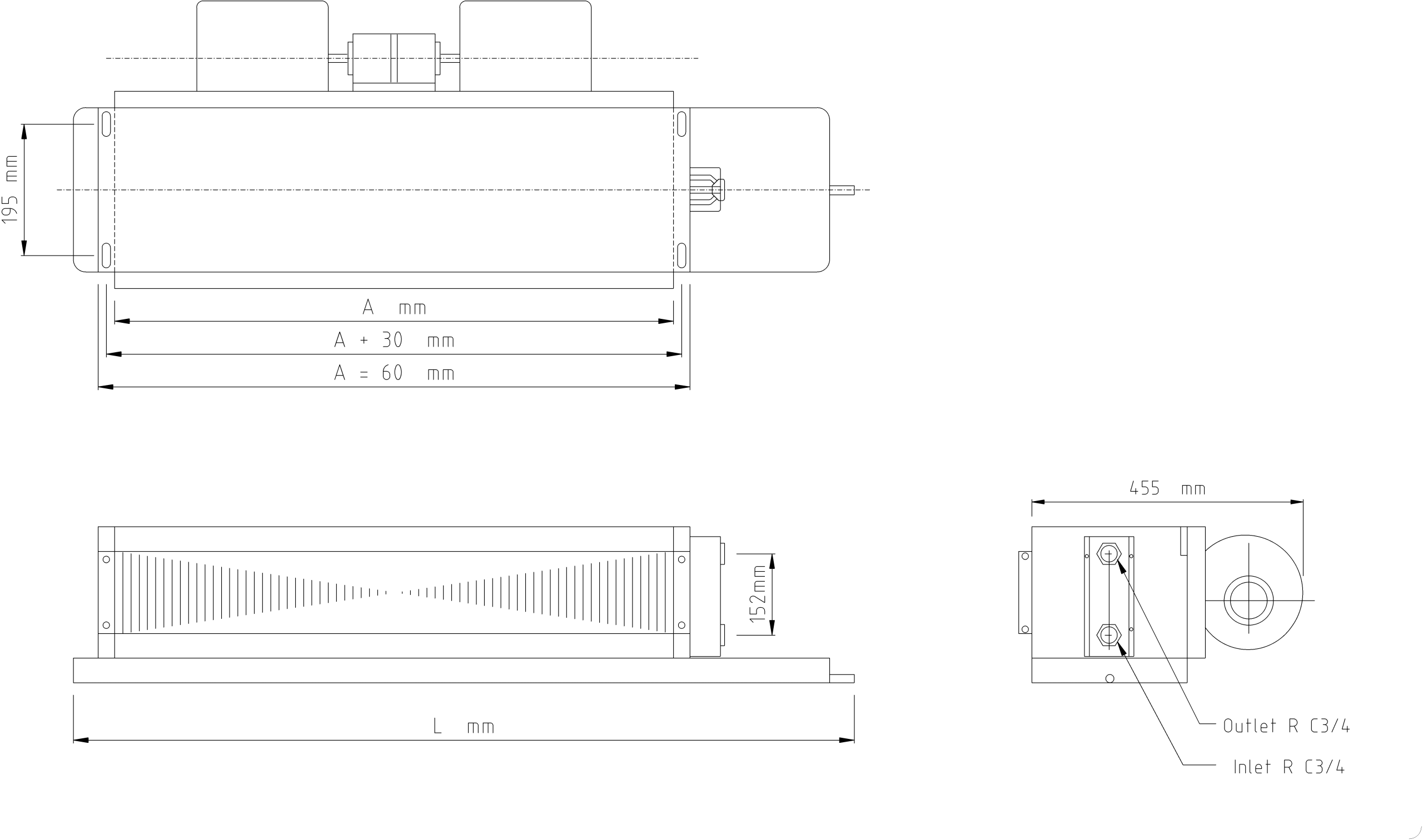

FP Series Fan Coil Unit Performance Table (EC) – 3 Pipe

UNI200R3 UNI300R3 UNI400R3 UNI500R3 UNI600R3 UNI800R3 UNI1000R3 UNI1200R3 UNI1400R3
Rated Air Flow
m³/h 		H 340 510 680 850 1020 1360 1700 2040 2380
M 260 390 510 640 770 1020 1280 1530 1790
L 170 260 340 430 510 680 850 1020 1190
Rated
Cooling
Capacity		 W H 1920 2810 3720 4660 5558 7282 9093 10980 12860
M 1833 2650 3145 3863 4738 6310 7250 9070 9851
L 1454 2015 2298 2766 3254 4411 5325 6688 6820
Rated
Heating
Capacity		 W H 3135 4550 5982 7360 8720 11381 14218 16750 18900
M 2651 4101 5268 6279 7200 9917 11701 14412 16041
L 2399 3597 3832 4485 4830 7039 8539 10625 10839
Input
Power		 W 12Pa 4-33 4-33 4-33 4-33 7-66 7-132 7-132 7-132 7-132
30Pa 4-33 4-33 4-33 4-33 7-66 7-132 7-132 7-132 7-132
50Pa 4-33 4-33 7-66 7-66 7-66 7-132 7-132 7-165 7-165
Nominal
Power		 (W) 12Pa 4-30 4-30 4-30 4-30 7-60 7-60*2 7-60*2 7-60*2 7-60*2
30Pa 4-30 4-30 4-30 4-30 7-60 7-60*2 7-60*2 7-60*2 7-60*2
50Pa 4-30 4-30 7-60 7-60 7-60 7-60*2 7-60*2 7-75*2 7-75*2
Noise dB(A) 12Pa 33 37 38 39 41 41 44 46 48
30Pa 36 39 40 42 43 44 46 48 50
50Pa 38 40 42 43 45 46 48 50 52
Fan Type Forward Curved Multi-Blade Centrifugal Suction Fan
Quantity 1 2 2 2 2 3 4 4 4
Motor Type EC Motor
Quantity 1 1 1 1 1 2 2 2 2
Water Volume
kg/h		 319 478 638 797 956 1275 1594 1913 2232
Water Press Loss W30 W30 W30 W30 W40 W40 W40 W40 W50
Gross
Weight		 WA (kg) 13 16 17 19 20 26 30 34 37
Inlet and Outlet Pipe Connection 3/4" Internal Thread
Maximum Allowable Working Pressure 1.2MPa
Packing Size 800*480*270 900*480*270 1000*480*270 1100*480*270 1200*480*270 1400*480*270 1700*480*270 1900*480*270 2100*480*270

FP Series Fan Coil Unit Performance Table (EC) – 4 Pipe

UNI200R4 UNI300R4 UNI400R4 UNI500R4 UNI600R4 UNI800R4 UNI1000R4 UNI1200R4 UNI1400R4
Air Flow
m³/h		 H 340 510 680 850 1020 1360 1700 2040 2380
M 260 390 510 640 770 1020 1280 1530 1790
L 170 260 340 430 510 680 850 1020 1190
Cooling
Capacity		 W H 1978 3018 3841 4839 6128 7458 9439 10626 12172
M 1721 2745 3150 3920 5085 6190 7362 8500 9493
L 1365 2081 2305 2807 3492 4325 5380 6270 6572
Heating
Capacity		 W H 3565 5346 7130 7877 9697 12363 15275 18328 20939
M 2969 4453 5940 6561 8078 10298 12723 15267 17443
L 2322 3482 4644 5130 6316 8053 9950 11938 13640
Input
Power		 W 12Pa 4-33 4-33 4-33 4-33 7-66 7-132 7-132 7-132 7-132
30Pa 4-33 4-33 4-33 4-33 7-66 7-132 7-132 7-132 7-132
50Pa 4-33 4-33 7-66 7-66 7-66 7-132 7-132 7-165 7-165
Nominal
Power		 (W) 12Pa 4-30 4-30 4-30 4-30 7-60 7-60*2 7-60*2 7-60*2 7-60*2
30Pa 4-30 4-30 4-30 4-30 7-60 7-60*2 7-60*2 7-60*2 7-60*2
50Pa 4-30 4-30 7-60 7-60 7-60 7-60*2 7-60*2 7-75*2 7-75*2
Noise dB(A) 12Pa 33 37 38 39 41 41 44 46 48
30Pa 36 39 40 42 43 44 46 48 50
50Pa 38 40 42 43 45 46 48 50 52
Fan Type Forward Centrifugal Multi-Blade Fan
Quantity 1 2 2 2 2 3 4 4 4
Motor Type EC Motor
Quantity 1 1 1 1 1 2 2 2 2
Water Volume
kg/h		 319 478 638 797 956 1275 1594 1913 2232
Water Press Loss W30 W30 W30 W30 W40 W40 W40 W40 W50
Gross
Weight		 WA (kg) 13 16 17 19 20 26 30 34 37
Inlet and outlet Pipe Diameter 3/4″ Internal Thread
Maximum allowable working pressure 1.2MPa
Packing Size 800*480*270 900*480*270 1000*480*270 1100*480*270 1200*480*270 1400*480*270 1700*480*270 1900*480*270 2100*480*270

Horizontal Ceiling Concealed Fan Coil Unit – High Capacity (4R)

Model 1.5 2 2.5 3 4 5 6 7 8 10 12 13 15
Air Flow (CMH) 1500 2000 2500 3000 4000 5000 6000 7000 8000 10000 12000 13000 15000
Cooling Capacity (kW) 16.6 21.4 27.2 32.8 44 53.2 63.5 77.8 94.6 112.3 137.4 152.9 170.8
Cooling Capacity (BTU/h) 56,672 73,060 92,861 111,979 150,216 181,625 216,789 265,609 322,964 383,392 469,084 522,001 583,111
Weight (kg) 84 86 103 105 156 169 179 185 204 245 318 359 410
Length (mm) 1103 1103 1103 1103 1103 1103 1103 1103 1103 1305 1305 1305 1305
Width (mm) 700 840 980 1120 1400 1680 1960 1960 1960 2080 2180 2280 2340
Height (mm) 500 500 500 500 500 500 500 580 620 680 740 780 810

Specifications are subject to change without prior notice due to product improvement.
