Uni-Drive motor baseplates provide sturdy, adjustable mounting solutions for motors and power transmission systems. Designed for easy alignment and tensioning, our baseplates enhance operational stability, reduce vibration, and simplify maintenance in industrial setups.

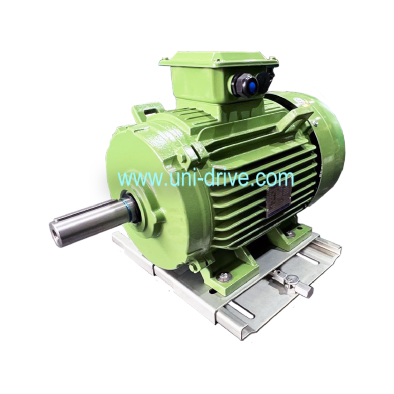

UMA Series Motor Bases
Material: Steel
Finish: Galvanization
Part No.: UMA210B, UMA210, UMA270, UMA307, UMA340, UMA380, UMA430, UMA450, UMA490
Features:
Supplied with split sliding plates for easy adjustment and convenient bolt fixing of motors
Dimensional Specifications
| Type | A | B | C | CH | D | E | F | G | H | L | M | N | O | P | Q | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UMA210B | 210 | 150 | 20 | 19 | 30 | 25 | 25 | 10 | 27 | 65 | 50 | 25 | 25 | 80 | 2.5 | 1.8 |
| UMA210 | 210 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 3 | 2.6 |
| UMA270 | 270 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 3 | 3.0 |
| UMA307 | 307 | 213 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 65 | 50 | 24 | 108 | 3 | 3.2 |
| UMA340 | 340 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 6.3 |
| UMA380 | 380 | 240 | 27 | 19 | 25 | 43 | 30 | 12 | 33 | 95 | 96 | 43 | 29 | 160 | 3 | 4.5 |
| UMA430 | 430 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 7.5 |
| UMA450 | 450 | 350 | 40 | 22 | 30 | 55 | 30 | 15 | 40 | 125 | 174 | 55 | 33 | 225 | 4 | 9.7 |
| UMA490 | 490 | 410 | 40 | 22 | 30 | 60 | 30 | 15 | 40 | 95 | 193 | 60 | 48.5 | 284 | 4 | 10.8 |
All dimensions are in millimetres unless otherwise stated. Specifications are subject to change without prior notice.
