UNI-DRIVE Precision helical shaft servo couplings are essential components in various mechanical systems, especially where accurate torque transmission and misalignment compensation are crucial. Here are some common types and their descriptions:

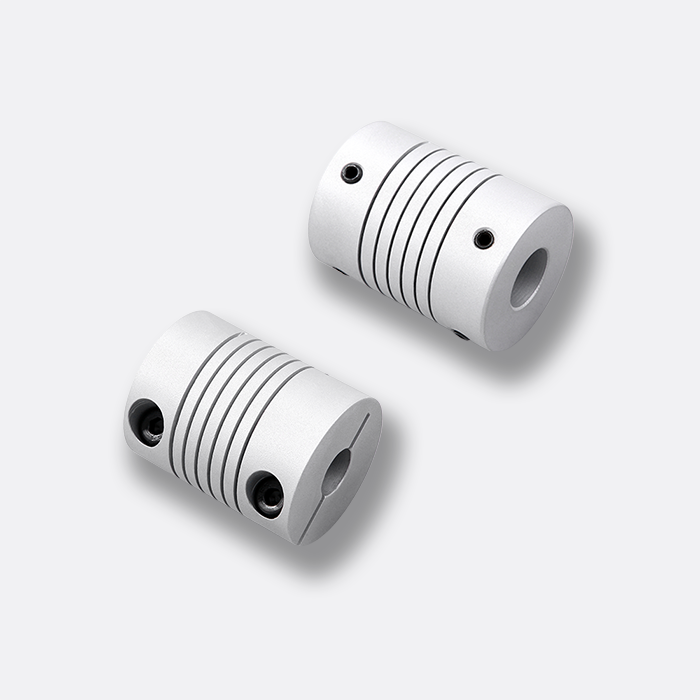

Beam (Helical) Couplings:
Description: Beam couplings are flexible couplings that typically consist of one or more helical beams that can flex to accommodate angular and parallel misalignments. They are known for their torsional stiffness and are often used in applications requiring high precision and minimal backlash.
Advantages: Zero backlash, high torsional stiffness, compact design.
Applications: Servo systems, robotics, precision instrumentation.

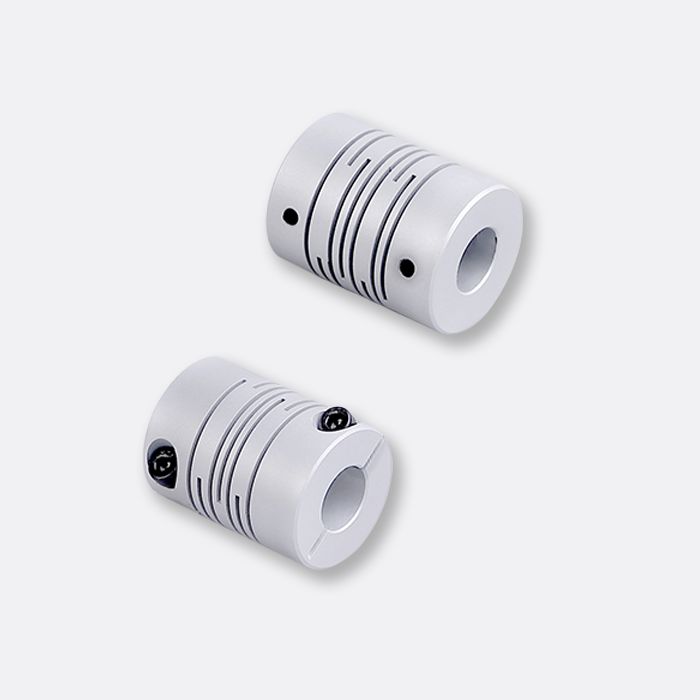

Multi-Beam (Multi-Helical) Couplings:
Description: Multi-beam couplings have multiple helical beams arranged around the coupling, providing high torsional stiffness and excellent flexibility for misalignment compensation.
Advantages: Low inertia, high torque capacity, moderate misalignment capability.
Applications: Robotics, aerospace systems, automated manufacturing.

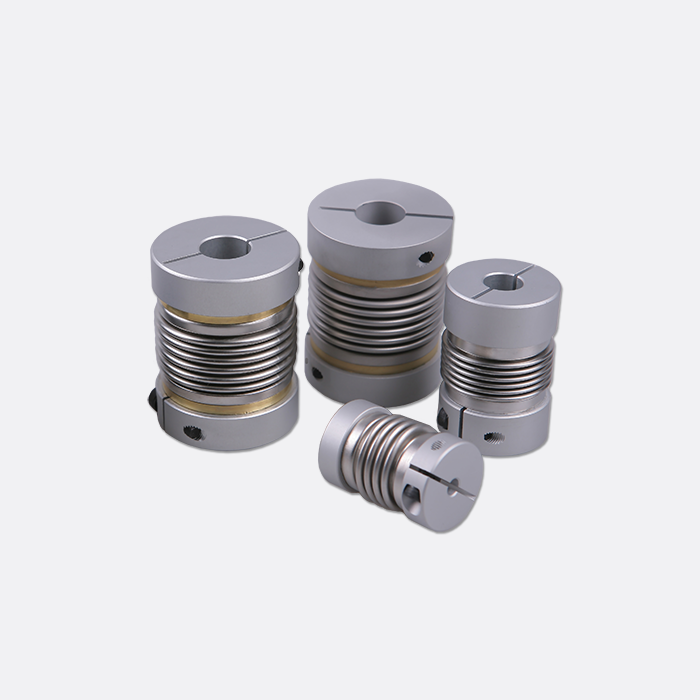

Bellows Couplings:
Description: Bellows couplings use thin, flexible metal bellows to transmit torque while accommodating misalignments. The bellows allow for axial, angular, and radial misalignment compensation.
Advantages: High torsional stiffness, low inertia, high-speed capability.
Applications: CNC machines, semiconductor manufacturing equipment, medical devices.

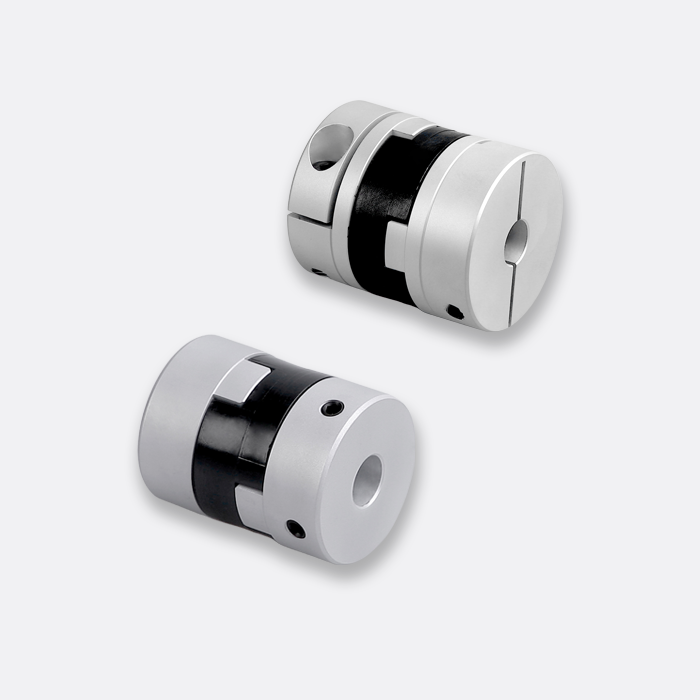

Oldham Jaw Couplings:
Description: Oldham couplings consist of three parts: two hubs and a center disc with slots that fit over the hubs. The slots allow for radial misalignment compensation while maintaining precise torque transmission.
Advantages: Moderate misalignment capacity, compact design, easy assembly.
Applications: Stepper motors, printing machinery, light industrial applications.

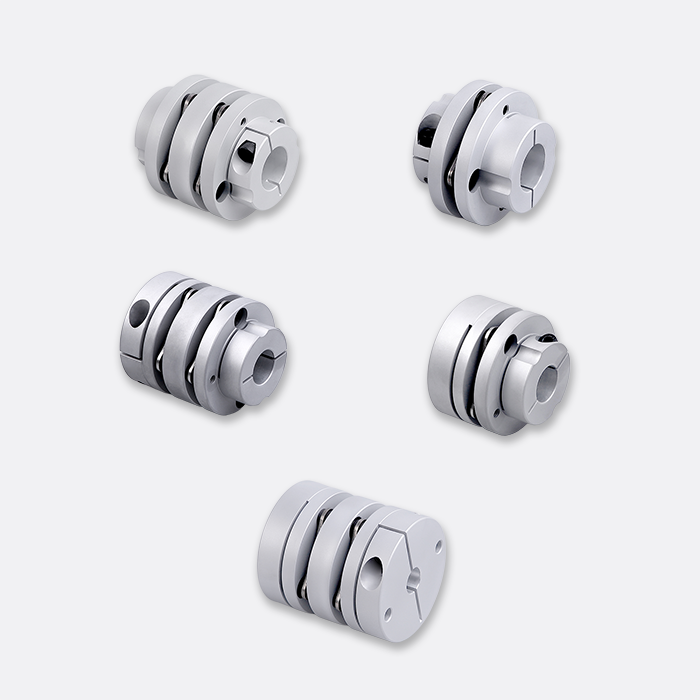

Flexible Disc Couplings:
Description: Flexible disc couplings use two hubs and a series of flexible discs (typically made of stainless steel) to transmit torque while compensating for angular and axial misalignments.
Advantages: High torsional stiffness, low restoring forces, vibration damping.
Applications: Machine tools, textile machinery, pumps.

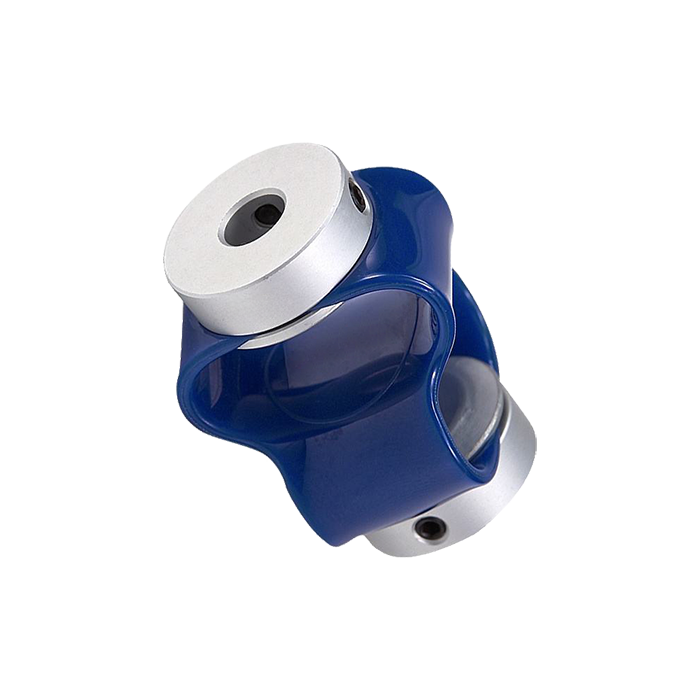

Cross-Flexing Couplings:
Description: Cross-flexing couplings use sets of double-beam flexible elements arranged in a cross shape, providing high torsional stiffness and accommodating misalignments in multiple directions.
Advantages: High torque capacity, excellent flexibility, precise motion transmission.
Applications: Printing presses, packaging machinery, automation systems.
Each type of precision helical shaft servo coupling has specific advantages and applications, depending on the requirements for torque transmission, misalignment compensation, stiffness, and backlash. Choosing the right coupling involves considering factors such as the type and amount of misalignment expected, torque levels, speed requirements, and environmental conditions.
