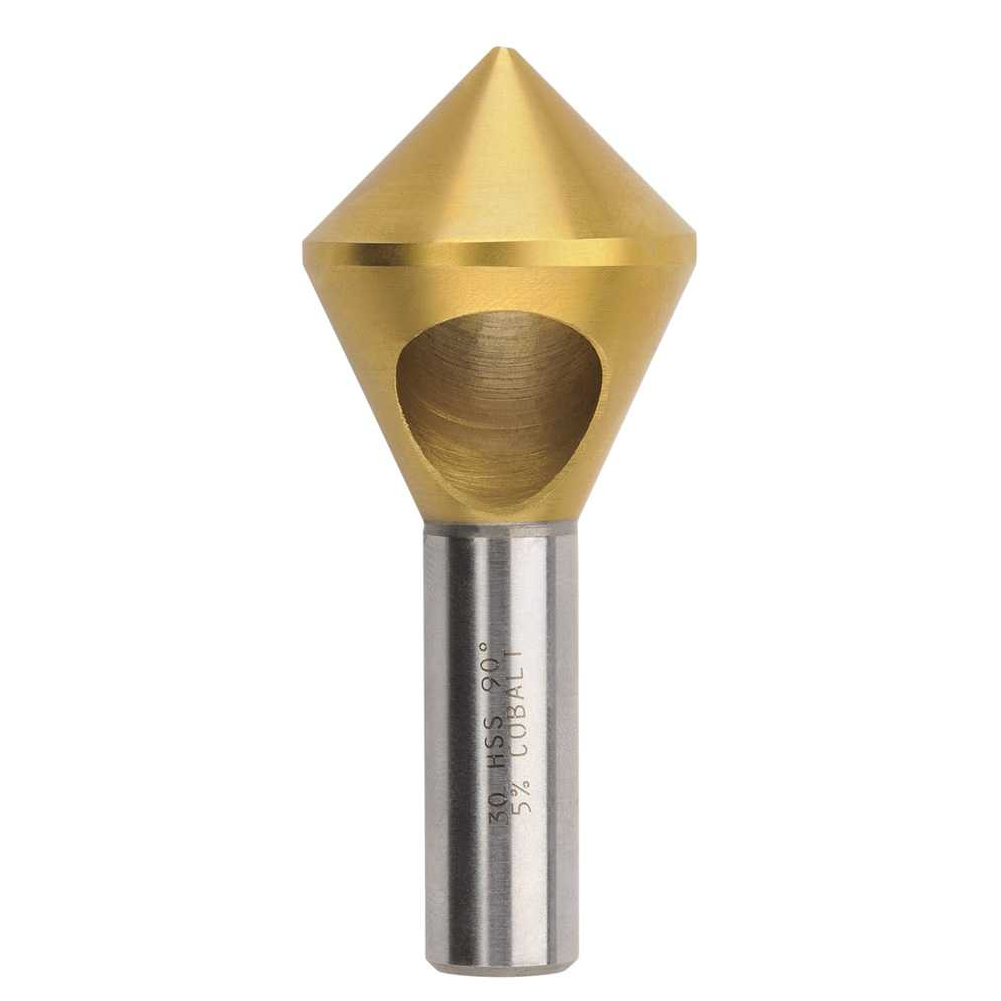

Bordo 30mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink, 3850-30

Description

About this item:

• 30mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
• Cross hole countersinks are ideal for countersinking and deburring in a wide range of materials including ferrous and non-ferrous metals.
• The intersection of the hole and cone form the cutting edge on the tool.
• The cone is not truly symmetrical as it is essential that the cone retreats away from the cutting edge as the tool rotates.
• If this does not occur the cutting edge will lack clearance and rub rather than bite into the material.
• This clearance is referred to as cutting relief.
• The radially relieved single cutting edge provide fast stock removal with low vibration for chatter- free operation ensuring the smoothest finish.
• These tools are best used as deburring tools, where a burr, or sharp edge, from a previous machining operation needs to be removed for cosmetic and safety reasons, however they may be used in softer materials (such as wood or plastic) to create a countersunk hole for a screw.
• Titanium Nitride (TiN) Coated Countersinks have a very hard gold coloured surface finish.
• This coating is only a few microns thick and is achieved by Physical Vapour Deposition (PVD).
• This treatment results in reduced friction, greater heat dissipation and reduced cold welding – which means higher speed and feed rates with greatly increased tool life.
• As with all surface coated tools, performance will deteriorate after resharpening.
