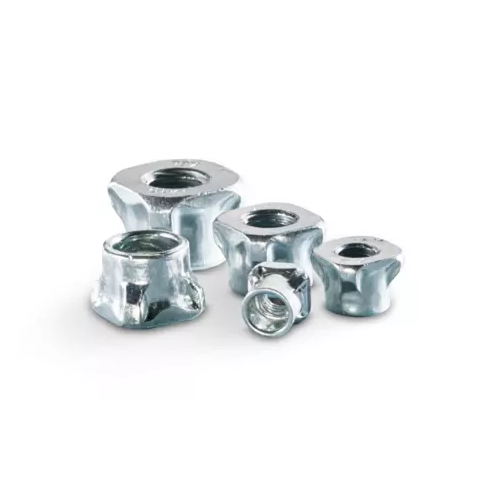

Kapti Rivet M5 x 8mm, Pack of 100, 8510 005 0011

$90.00

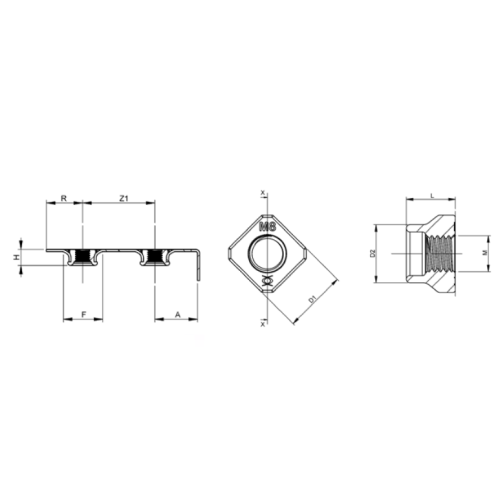

Description: Kapti Rivet

Size d: M2

D1: 8.9mm

D2: 7.9mm

L: 8mm

Sheet Thickness: 0.7mm

Hole Diameter Ø: 4mm

ØF: 14mm

H: 4.2mm to 5.5mm

A: 10mm

Z1: 19mm

R: 9mm

Setting Force: ~35 kN

Available on backorder

SKU: KR-85100050011 Category: Tag: Brand:

Description

KAPTI® Rivet is a rivet nut which has been especially developed for the creation of screw joints in sheet metal components. In the mechanical setting process, it is permanently and loss-proof inserted into thin steel or aluminium sheets. The rivet nut can be processed press-integrated so that multiple fasteners can be inserted into the component in a single operation and the user benefits from a high economic efficiency.
