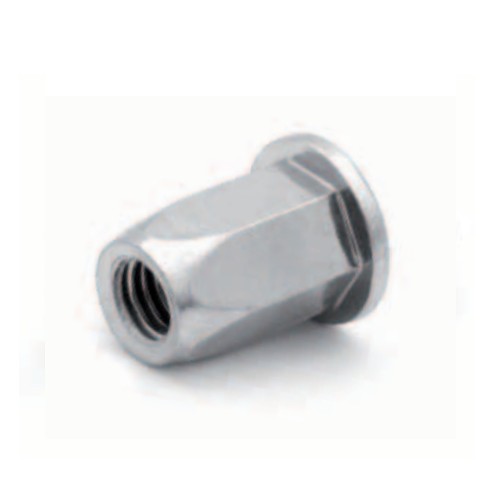

Rivkle Blind Rivet Nut M4 (For 0.5mm to 2mm), Flat Head Hexagonal Open, Steel, Pack of 100, 233 41 040 020

Description

RIVKLE® blind rivet nuts offer versatile solutions for fastening load-bearing nut threads to thin-walled workpieces or hollow profiles. They are very easy to install in single- or multi-layer components without a counterhold (‘blind’). A blind rivet nut has a specific area in the shank that contracts when the setting force is applied and forms a bead. This provides a clamp between the head and the bead and holds the blind rivet nut firmly in the component. The blind rivet nuts are essentially set in four steps. The blind rivet nut is threaded onto the mandrel until it makes contact with the nose piece. The blind rivet nut is then inserted into the hole in the component until the underside of the head lies flat against the component. The blind rivet nut is then compressed according to the specified parameters, forming a clamping bead. Please refer to the RIVKLE® product catalogue for the appropriate setting force for your dimensions. In the fourth step, the spindle is unscrewed and the blind rivet nut is ready for use.
