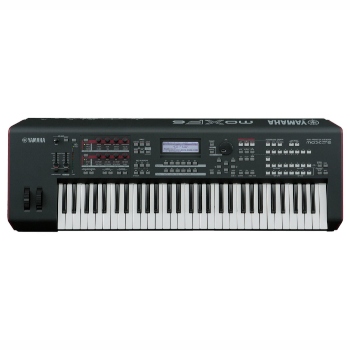

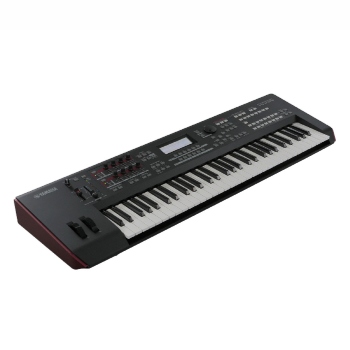

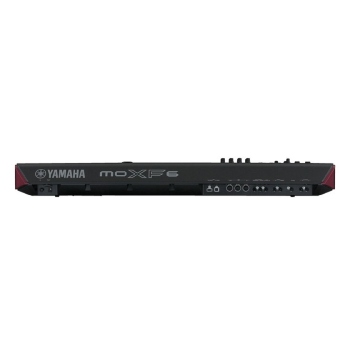

MOXF6

Product Description
A Universe of Sounds from a Decade of Motifs
We’ve updated the popular MOX Series with the latest MOTIF XF technology by adding more sounds, more effects and even a Flash board option slot. Because it’s compatible with MOTIF XF and MOX data, MOXF has a huge collection of sound and sample libraries and optional software available right away. Expandable, portable, affordable, and compatible with a wide range of other products, these instruments brings MOTIF music production power to a whole new generation of musicians and producers.

5 main features

MOTIF XF sound quality

The MOXF6 boasts a rich collection of instrument voices that includes pianos, electric pianos, strings, wind instruments, orchestral sounds, guitars, basses, and drums, as well as a wide variety of vintage and modern synth sounds.

– MOTIF XF sound engine

Of special note are the detailed digital re-creations of two Yamaha grand pianos (a 9-ft CFIIIS and a 7-ft S6) that only an acoustic piano manufacturer could achieve.

The finely-detailed reproduction of even very subtle nuances has resulted in exquisitely crafted piano voices that will satisfy even the most demanding players. Now containing a huge total of 741 MB of waveforms, and featuring all-new content, the MOXF6 offers 136 new voices including the superb S6 grand piano, keyboard sounds such as clavinets and organs, and a range of new sounds from genres as diverse as orchestral and hip-hop.

– VCM effects

Yamaha’s proprietary VCM (Virtual Circuitry Modeling) technology simulates the effects of vintage EQs, compressors, and phasers at the circuit level. This technology has enabled Yamaha to improve the quality of the instruments in the MOXF6 by modeling the sonic texture of vintage analog compressors, EQs and stomp boxes right down to their component transistors and resistors. The MOXF6 also puts the high-quality effects found in Yamaha’s industry-standard digital recording consoles at your fingertips, as well as the award-winning REV-X reverb found in the SPX2000. It even comes equipped with vocoder effects, allowing you to connect a microphone to the MOXF6’s A/D input terminal and apply effects to your voice or create stunning harmonies.

Flash memory expandability
The MOXF6 is compatible with the sound content developed for the MOTIF XF and MOX. The optional Flash board lets you add up to 1 GB of new samples to your MOXF6 to customize and tailor your sound set to your needs, using promotional contents like Yamaha’ s “Inspiration In A Flash” and “CP1 Piano,” as well as the many third party libraries for sale.

Performance mode to enhance your creativity

Performance mode allows you to combine multiple voices together (up to 4 parts) and play them on one MIDI channel, so that you can play dynamic layer sounds or even solos along with drums and bass backing tracks. With the interactive Arp engine, playing simple chords or even single notes gives you complete musical performances to inspire your creativity. The MOXF6 has 256 preset performances in a wide variety of music styles including rock, world, hip hop, jazz, and more.

– Built-in sequencer to give shape to your inspiration
MOXF6 features a built-in sequencer that lets you produce high-quality music without the need for a computer or any other external devices. This powerful tool offers both real-time recording, which records your performance data as you play it, and step recording, which is suitable for recording precise phrases or other difficult passages. You can even record particularly creative performances directly to a song or pattern simply by pressing the [REC] button.

Advanced computer integration makes the MOXF the center of your music production studio

01 A complete suite of bundled software

The MOXF6 comes with a variety of music production software that allows you to integrate it with your computer setup. These include the MOXF Editor for detailed editing of voice and mixing parameters, MOXF Remote Editor, a convenient tool that lets you edit and create control templates for your favorite VST instruments, and Remote Tools, which makes integration with Cubase software incredibly simple.

02 A single USB cable for both Audio and MIDI connections
A single USB cable is all you need to transmit both audio and MIDI data between the MOXF6 and your computer. The MOXF6 features a built-in 4-in 2-out USB audio interface so you can record its internal sounds, and two dedicated audio inputs that can be used to capture guitars and vocals all recorded directly to your computer. Compatible with all the major DAWs including Cubase, you can digitally record the sounds of the MOXF6 and anything connected to its stereo analog inputs straight to your favorite recording software. Far more than just a music production tool, the USB connectivity and in-depth keyboard controller functionality also lets you playback and control your VST soft synths via the audio outputs of your MOXF6, allowing you to integrate VSTs into your live stage shows with no extra gear—just add a computer and play.

03 Music production with Cubase AI 8

Cubase AI 8 is a version of Steinberg’s DAW (Digital Audio Workstation) software made specifically to integrate with Yamaha music production synthesizers. Because the MOXF6 features both a MIDI and an audio interface you can record up to 32 audio and 48 MIDI tracks. You can even connect an analog mixer, microphone or guitar to the analog inputs, you can record any instrument to your computer via the MOXF6. With built-in effects and the ability to control up to 16 VST instruments, Cubase AI lets you perform the complete computer music production process, including notation, scoring, and automated mixing.

04 Controlling DAW software
The MOXF6 has a special remote mode for controlling DAW software that allows you to use the buttons on its panel to open and close software windows, add instrument tracks and select VST instruments. The AI knob can be used as a jog wheel or set so that any parameter you mouse over in Cubase can be controlled automatically. You can also use the MOXF6 to control other popular DAW packages.

05 Steinberg Prologue VSTi

Prologue is a wonderfully rich-sounding virtual analog synthesizer that will become an indispensable part of your VSTi arsenal. Prologue’s textural range includes lush, detailed pads and bright, acerbic leads and everything in between. Prologue’ s intuitive user interface provides full editing capabilities with access to its three oscillators, powerful multi-mode filter, four envelopes, two LFOs, a powerful modulation matrix, and onboard effects. And because Prologue is polyphonic with up to 128 voices, you’ll (probably) never run out of creative space.

06 YC-3B Tone Wheel Organ VST
YC-3B is a VST Instrument that reproduces the classic sound of tone wheel organs. It offers 64 different preset sound programs that you can also use to create your own original sounds, which you can then save as VST presets.

Playability and Usability

– Easy operation and comprehensive controls

Category search mode features 16 different instrument categories, each with its own sub-categories, so getting the sound you need is a fast and intuitive process. With Performance Creator you can easily build up layer or split performances with a single button press. Start with a voice you like, and then press LAYER to have the MOXF6 choose a suitable layer sound. Press SPLIT to call up a left hand bass sound automatically, and then go to DRUM ASSIGN to access the huge variety of built-in rhythm patterns available.

– 61-key semi-weighted action

The MOXF6 offers a 61-key, semi-weighted keyboard that has been designed and adjusted so that you can easily and expressively play the rich variety of sounds the instrument offers.

– Mobility – Light and easy to carry

A lightweight body (MOXF6: 7.1kg (15.7lbs)) means that carrying the MOXF to rehearsals or gigs is easy— pound-for-pound these are the most powerful workstations Yamaha has ever made. This model is 50% lighter than comparable MOTIF models.

Keyboards

Tone generator

Sequencer

Size/Weight

Other
